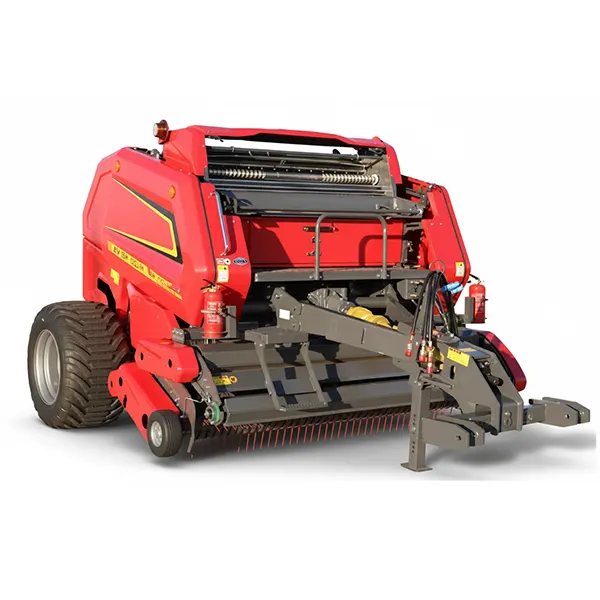

Forage Baler – 9YG-2.24D Round Baler S9000 (Base) for Hay & Silage Baling

9YG-2.24D-round-baler-base

Discover the 9YG-2.24D Round Baler S9000 Base Model, designed for efficient hay and silage baling. Perfect for large-scale U.S. farms, with 2240 mm pickup width, sensor-controlled bale density, and 55–100 kW power compatibility.

Category:
Inquire Now

Product Overview

The 9YG-2.24D Round Baler S9000 (Base Model) is specifically designed for efficient hay, silage, and straw baling on large-scale farms. With a sensor-controlled bale density system it ensures consistent, high-quality bales suitable for long-term storage and transportation. Whether you're operating in dry fields or humid conditions, the S9000 Base Model provides exceptional durability and reliability.

  9YG-2.24D-round-baler-base-application

Specifications Table

Item Unit Specification
Model Name / 9YG-2.24D Round Baler (S9000 Base Model)
Hitch Type / Pull-Type
Pickup Width mm 2240
Pickup Structure Type / Spring Tooth Type
Feeding Mechanism Type / Comb Roller + Roller Type
Compression Chamber Baling Mechanism / Roller Type
Compression Chamber Width mm 1400
Compression Chamber Diameter mm Φ1200
Number of Compaction Components pcs 18 (Rollers)
Compaction Roller Diameter mm Φ222
Baling Method / Net Wrap
Required Power kW 55–100
Machine Weight kg 4262
PTO Shaft Speed r/min 720
Overall Dimensions (L×W×H) mm 4240 × 3010 × 2450 (in operation)
Bale Density Control / Sensor-Controlled
Bale Size (Diameter × Width) mm Φ1300 × 1400
Bale Density kg/m³ 100–200
Production Rate bales/hour 40–100
Wheelbase mm 2600
Operating Speed km/h 5–35
Net Wrap Size m 2000 × 1.4 m per bale

Key Features

💪 Reliable Performance

The high-torque rotor system makes it capable of working through various conditions, including dry hay or dense silage. It also ensures efficient operation in rugged terrains, ensuring optimal baling in the toughest environments.

🌱 Eco-Friendly Design

Designed with fuel efficiency in mind, the baler reduces emissions and helps farmers meet modern environmental standards. It is ideal for eco-conscious farms looking to reduce their carbon footprint while maintaining high performance.

🛠️ Durability

Crafted with Hardox® steel, the 9YG-2.24D S9000 baler is built for superior wear resistance, allowing it to perform consistently over time with minimal maintenance. This makes it an ideal choice for long-term operations in diverse agricultural conditions.

🚜 Tractor Compatibility

Compatible with tractors in the 75–135 HP range, including trusted brands like John Deere, Case IH, and Kubota, the baler can be easily integrated into your existing fleet without additional modifications.

9YG-2.24D-round-baler-base-feature

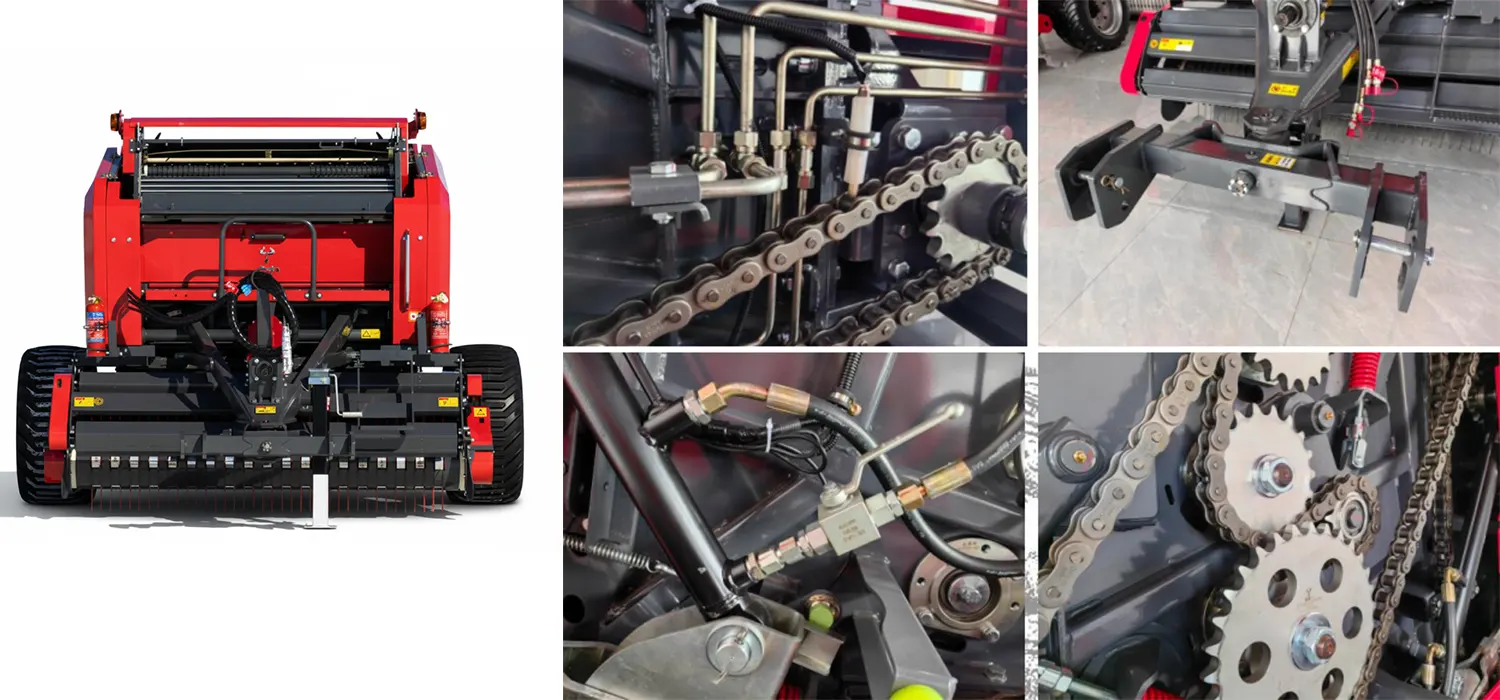

🔧 Advanced Features for Improved Bale Density and Performance

💥 Enhanced Compression Force

The baler is equipped with dual 20A heavy-duty chains at the rear, boosting compression power. This increases the bale density, with a capacity of up to 500-1000 kg per bale, perfectly meeting customer needs for high-density bales.

🔄 Adjustable Hitch for Flexibility

The new hitch system, with an adjustable angle of up to 100°, allows for horizontal rotation of the baler. This innovation solves the problem of limited angular adjustment in other round balers, ensuring higher operational flexibility in varying field conditions.

🛠️ Optimized for Easy Use

The adjustable hitch design reduces wear and tear on the tractor’s frame, while the heavy-duty chain system ensures that the baler operates smoothly, even in demanding working environments.

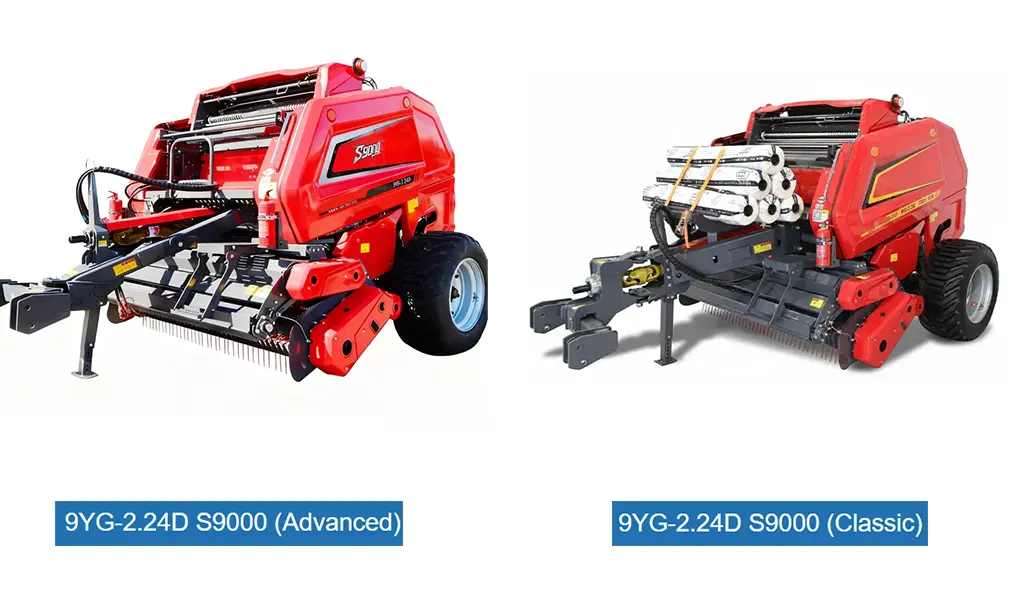

Product Comparison with 9YG-2.24D S9000 Base Model, Classic, and Advanced

9YG-2.24D S9000 (Baes Vs Classic Vs Advanced)

This section compares the Base Model with the Classic and Advanced versions of the 9YG-2.24D S9000 Round Baler. It highlights key differences in specifications and performance.

Feature 9YG-2.24D S9000 (Base Model) 9YG-2.24D S9000 (Classic) 9YG-2.24D S9000 (Advanced)
Required Power 55–100 kW (75–135 HP) 55–100 kW (75–135 HP) 60–120 kW (80–140 HP)
Bale Density Control Sensor-Controlled Sensor-Controlled Automatic Bale Density Control
Bale Density 100–200 kg/m³ 100–200 kg/m³ 100–250 kg/m³
Production Rate 40–100 bales/hour 40–100 bales/hour 50–120 bales/hour
Machine Weight 4262 kg 4312 kg 4600 kg
Operating Speed 5–35 km/h 5–35 km/h 5–40 km/h

Key Differences:

  • Power Compatibility: The Base Model and Classic Model both work with tractors from 75 HP to 135 HP, while the Advanced Model supports up to 140 HP for more demanding tasks.

  • Bale Density Control: The Advanced Model offers automatic bale density control, providing more precise control over bale compaction.

  • Production Rate: The Advanced Model can produce 50–120 bales per hour, which is faster than both the Base and Classic Models, making it better suited for larger operations.

Professional Model Selection Guide

Choosing the Right Baler for Your Farm

When selecting a round baler, it's important to consider several key factors:

🌾 Farm Size and Operation Speed:

  • Base Model is ideal for medium-sized farms with typical hay and silage production needs. It is perfect for farms requiring standard production rates and consistent bale quality.

  • For larger farms with heavier workloads, the Advanced model offers higher production rates and automatic bale density control, ideal for challenging conditions or high-volume operations.

🚜 Tractor Power Compatibility:

  • The Base Model and Classic Model both work well with tractors in the 75–135 HP range. If you are using tractors with higher horsepower or plan to upgrade to heavier-duty tractors in the future, the Advanced Model is a better fit, as it supports up to 140 HP.

🔒 Bale Density and Storage Needs:

  • If you need tighter bales or are dealing with higher-density silage or hay storage, the Advanced Model offers better control with its automatic density system.

  • However, for general hay and silage production, the Base Model provides excellent value while still delivering good bale density.

🌱 Environmental Considerations:

  • The Base Model and Classic Model are eco-friendly with efficient power use, making them suitable for environmentally-conscious farmers looking to minimize fuel consumption.

  • The Advanced Model, with more automation, also enhances operational efficiency, reducing labor costs over time.

9YG-2.24D-round-baler-compare

Why Choose Us?

At US Forage Baler Equipment Co., Ltd., we take pride in offering products that not only meet but exceed industry standards. Here’s why you should choose our Round Balers for your farm:

🔧 Innovative R&D – Engineered for Real Farms

Backed by 98+ national patents, our engineering team focuses on solving real-world challenges, including:

  • Anti-clogging pickup systems

  • Ultra-durable knotter mechanisms

  • Wear-resistant components

Every agricultural round baler is developed using advanced CAD/CAE simulation, ensuring optimal performance long before metal meets the workshop.

🏭 Smart & Lean Manufacturing – Precision at Scale

Our 32,000 m² smart factory integrates automated welding, CNC laser cutting, and electrostatic painting lines. With rigorous quality control at every stage, we produce 2,000+ balers annually, maintaining a defect rate of less than 0.5%, ensuring consistent, field-ready reliability.

🌍 Global Presence – Trusted from Asia to the Americas

We export to over 30+ countries including Russia, Brazil, Mongolia, and the U.S.. We've mastered diverse conditions:

  • Wet rice straw

  • Dry prairie hay

  • Rocky pastures

  • Extreme climates

Our wholly-owned subsidiary in Mongolia ensures faster local support and deeper market understanding.

🌱 End-to-End Solutions – Beyond Just a Baler

Why coordinate with five suppliers? We offer a complete hay and straw handling workflow, covering:

  • Mowing → Raking → Baling → Transport → Shredding
    Design your entire system with one partner—ensuring compatibility, efficiency, and single-point accountability.

📜 Certifications and Patents

We adhere to the highest standards in the industry, with certifications and patents to guarantee quality and compliance:

  • ✔ ISO 9001 Certification

  • ✔ EAC Certification

  • ✔ CE Certification

  • ✔ EPA Certification / CARB Certification

  • ✔ GOST-R Certification

Certification

🏆 Awards and Achievements

We have received multiple national and international patents, showcasing our leadership in the industry and commitment to continuous innovation.

FAQ - Frequently Asked Questions

Q1: What is the ideal tractor horsepower for the 9YG-2.24D S9000 Base Model?
A1: The Base Model works efficiently with tractors in the 75–135 HP range, making it suitable for medium to large-sized farms.

Q2: How does the automatic bale density control work?
A2: The Advanced Model features automatic bale density control, which adjusts the compaction based on the crop and moisture content, ensuring consistent bale quality throughout the process.

Q3: What is the recommended maintenance for this baler?
A3: Regular maintenance includes checking the PTO shaft, ensuring the net wrap system is functioning, and greasing the moving parts. We recommend a complete inspection every 200 operating hours.

Q4: Can this baler be used in both dry and wet conditions?
A4: Yes, the 9YG-2.24D S9000 Base Model is designed to handle both dry hay and wet silage conditions, making it versatile for varying weather and crop types.

Q5: How do I know which model to choose?
A5: If you operate a medium-sized farm with standard production needs, the Base Model is ideal. For high-volume operations or larger farms, the Advanced Model offers faster production rates and higher bale density control.

Q6: Is the 9YG-2.24D S9000 Base Model compatible with older tractors?
A6: Yes, the Base Model works well with older tractors in the 75–135 HP range, making it a great option for farms with existing equipment.

Customer Reviews

Oleksandr Kovalenko, Ukraine (August 2024)

  • Organization: AgroHarvest Cooperative

  • Location: Kharkiv Region, Ukraine

  • Application: Wheat straw baling for export and cattle bedding

Quote:
"After supply chain issues with German balers, we switched to the S9000. Same performance, 40% lower cost, and spare parts arrived in 5 days from China. We’ve since replaced two more old machines with this model."

John M., California (April 2025)

  • Location: California, USA

  • Application: Hay bales for livestock feed

Quote:
"The 9YG-2.24D S9000 Base Model was a great investment for our 500-acre farm in California. The sensor-controlled bale density system ensures that our bales are consistently packed, which is crucial for efficient storage. Highly recommend it for farms of our size!"

Emily P., Texas (October 2024)

  • Location: Texas, USA

  • Application: Silage baling

Quote:
"We’ve been using the S9000 Base Model for silage on our Texas farm, and it handles our humid conditions well. The baler’s build quality is impressive, and the pick-up structure works seamlessly in dense crops. Excellent choice for small to medium farms."

Marco R., Italy (June 2023)

  • Location: Sicily, Italy

  • Application: Olive tree pruning collection

Quote:
"Our farm in Sicily requires specialized equipment, and the S9000 has exceeded our expectations. We’ve been able to handle the olive tree pruning process much more efficiently, and the advanced bale density control ensures consistent output. No complaints whatsoever."

Carlos T., Brazil (December 2023)

  • Location: Sao Paulo, Brazil

  • Application: Hay production for livestock

Quote:
"The S9000 Base Model has been an excellent choice for hay production on our Brazilian farm. We operate in varied terrain, and the heavy-duty compaction roller ensures even bales regardless of field conditions. The machine is easy to maintain, and parts arrive promptly."
